Heavy Duty Hydraulic Pole Setter S-HDPS610(125-520)-MP1220

The HEAVY DUTY POLE SETTER is designed to handle big, heavy utility poles up to 45 feet long.

Type:
S-HDPS610(125-520)-MP1220
Products Code:
03.03.31.0001
Surface Treatment:
Black Painting or As Request

Product Details

The HEAVY DUTY POLE SETTER is designed to handle big, heavy utility poles up to 45 feet long.

- With the Heavy Duty Pole Setter, the operator can pick up a pole on the ground, or on a trailer, and rotate up to the vertical.

- At this point the operator can easily position the pole the way he wants, without any effort, and with a complete security.

- It opens to 520mm and closes down to 125mm, and assures quick and easy loading, unloading, pulling or setting of 45 foot UTILITY POLES.

- The HEAVY DUTY DOUBLE POLE CLAW eliminates the need for cranes, slings, and man-hours.

- The Rubber lining prevents damage, and the second sequencing claw allows for precision setting.

Features
• Fit all the Skid Steers equipped with the Universal Quick’Tach.

• Rotates to 115 degrees.

• Weight 616kg.

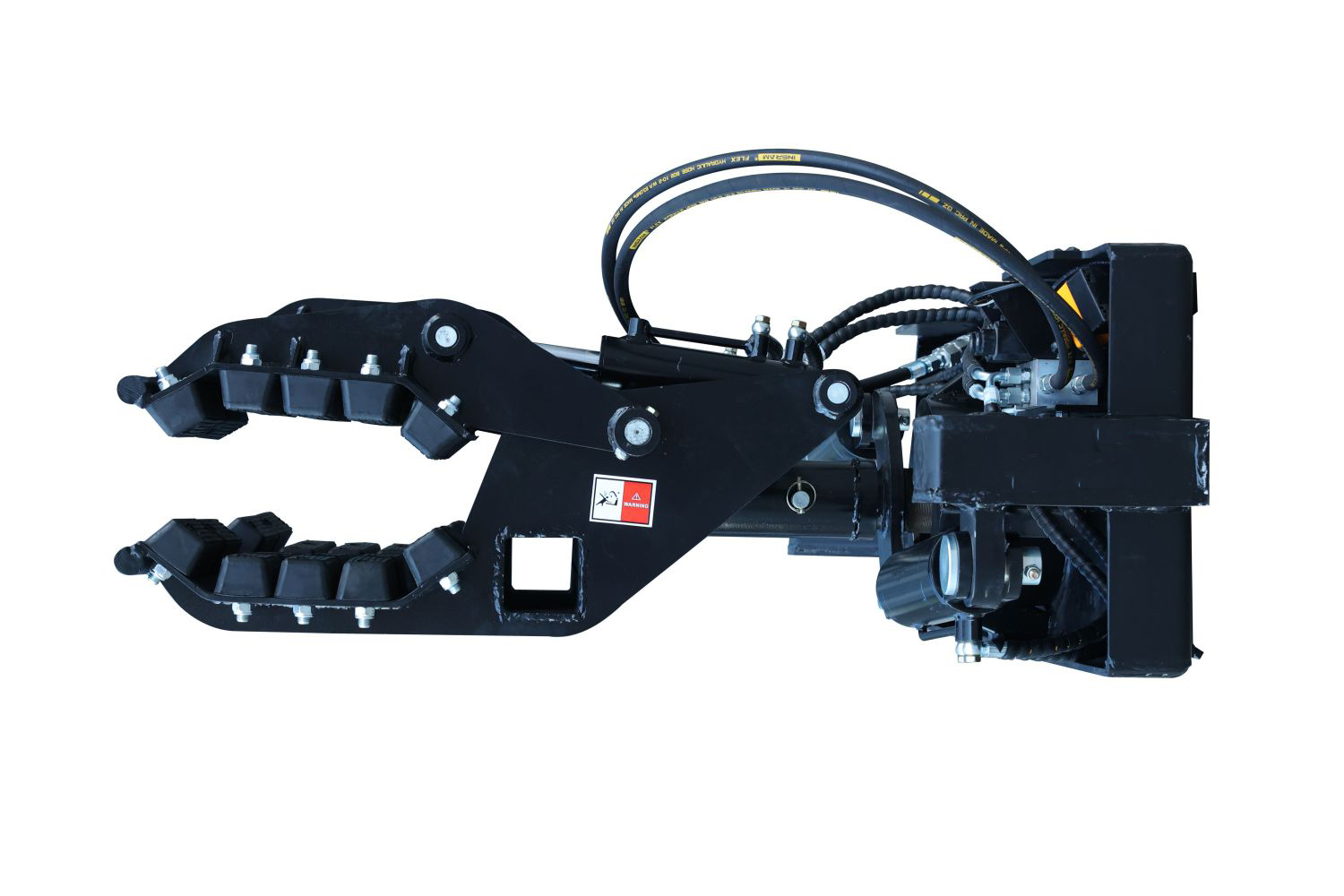

• Designed with 2 independent jaws that open and close one after another for more security and safety.

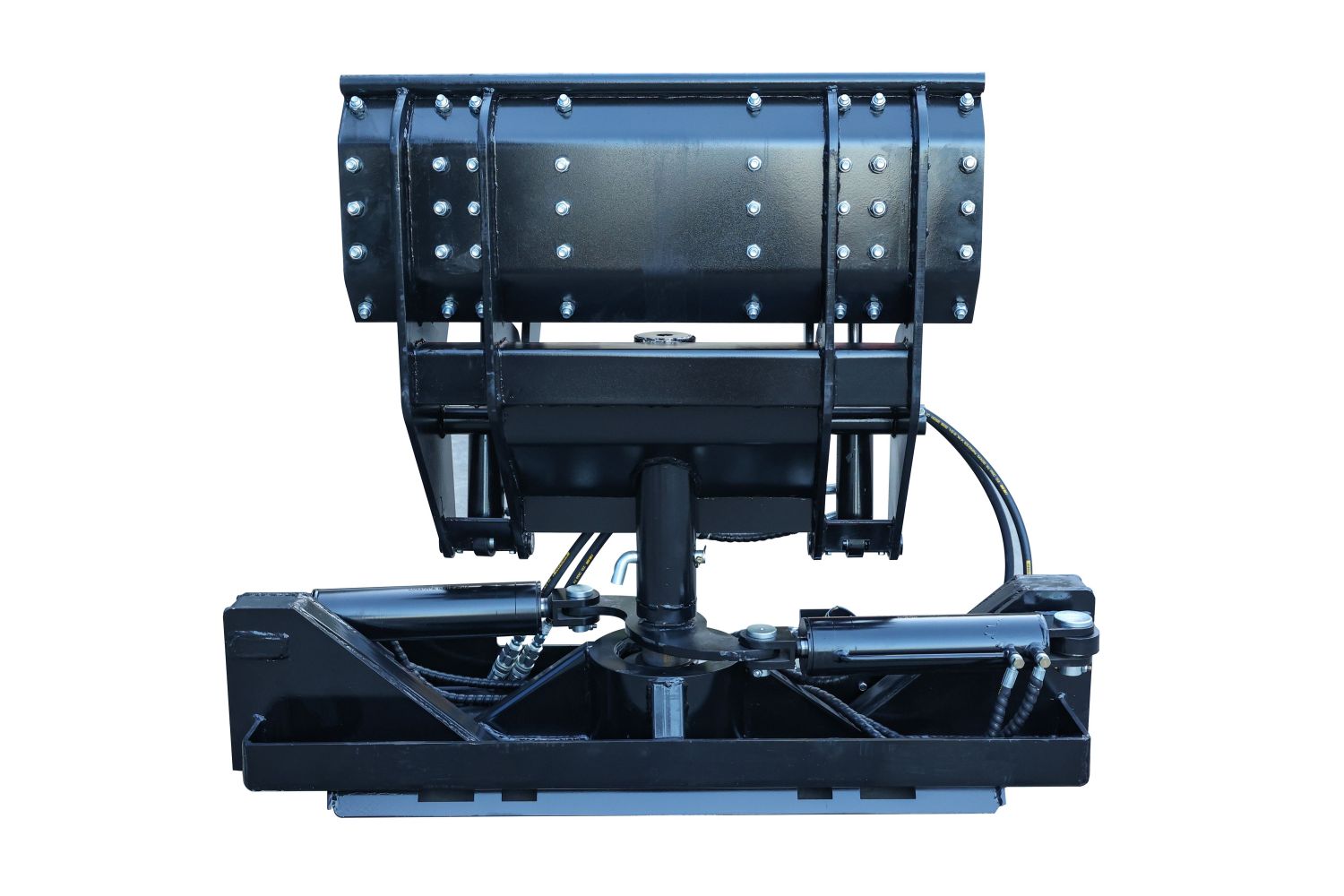

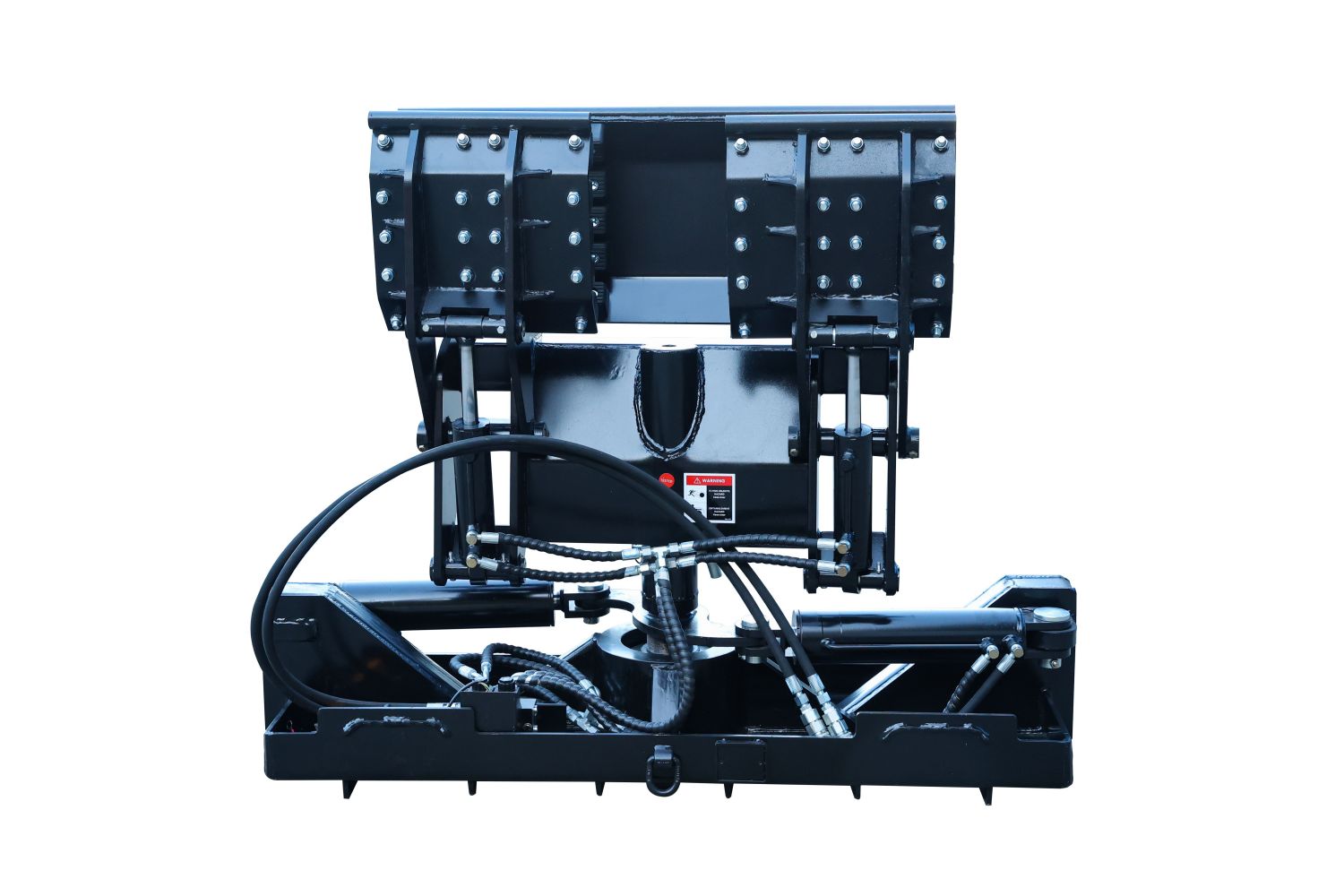

• Designed with a double cylinder rotating plate for more stability and precision.
• Made of 1/2 inch steel grade 80 or higher.

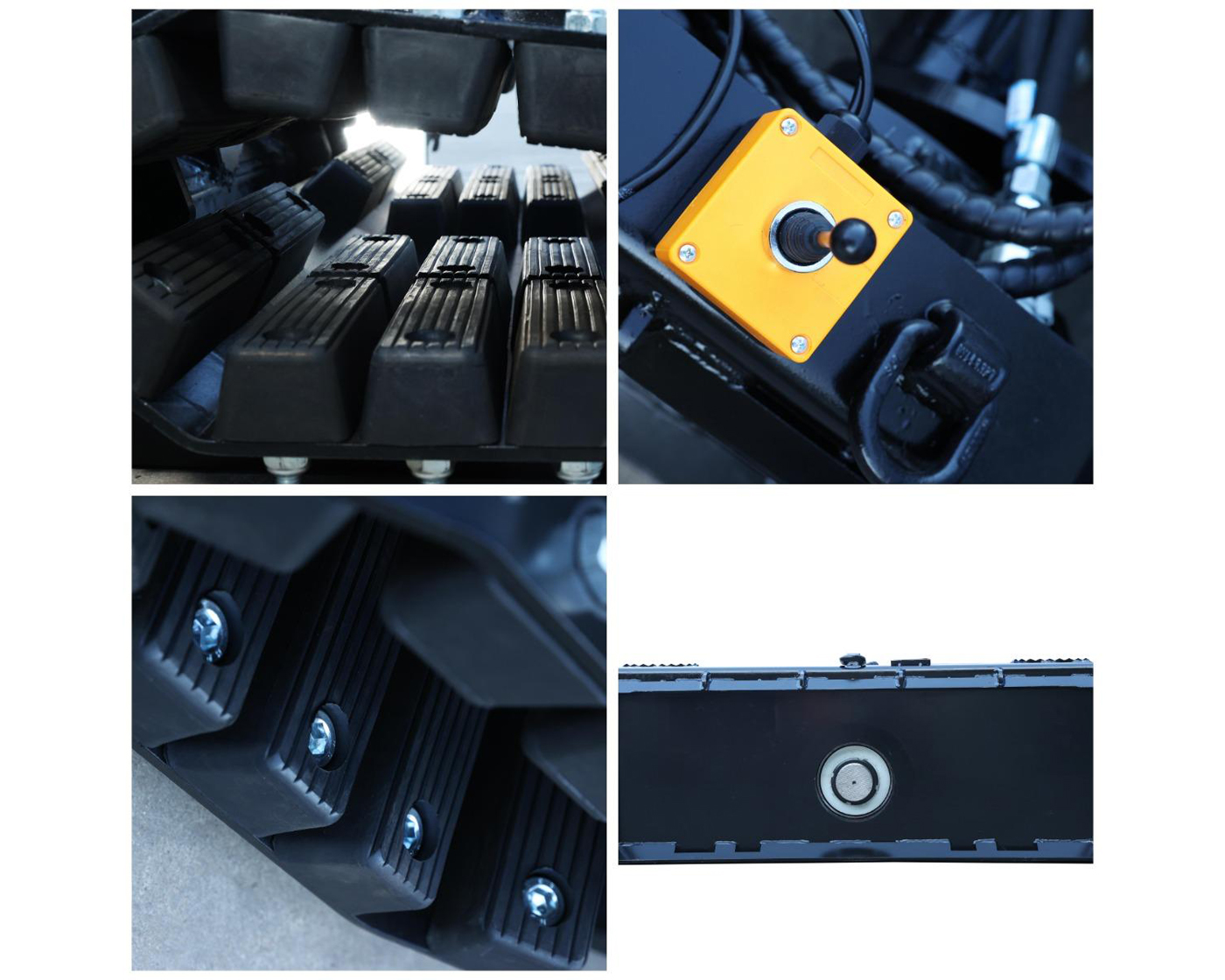

• Comes standard with rubber lining to protect the pole.
• The clamping is activated by two 3’’ X 6’’ cylinders.

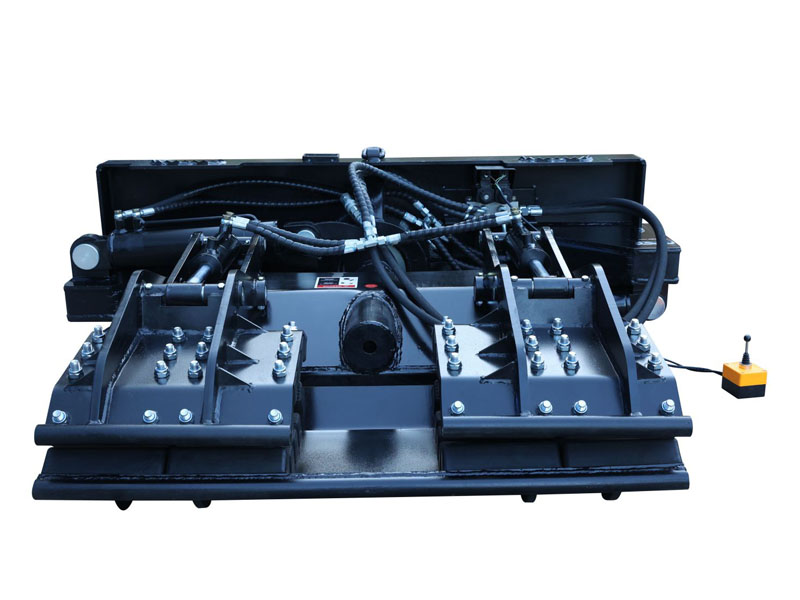

• The backing plate is designed to carry the pole above the skid steer to facilitate the pole transportation and reduce
the natural movement of the pole.
• Comes complete with flush faced coupler, spring hose mount and wiring harness

• Can be adapted to Excavator, Wheelloader, Telehandlers and Backhoes.

•Width/mm:1640

The Heavy Duty Pole Setter is currently being used in the following industries:
• Utilities
• Rural Electric Associations
• Electrical Contractors
• Mining
• Oil
• Foundations
• Government
• Parks and Recreations
• Piling and Shoring
• Boring and Drilling
• Fencing
• Wind Tower Installation
• Solar Panel Installation
• Electric Cooperatives
