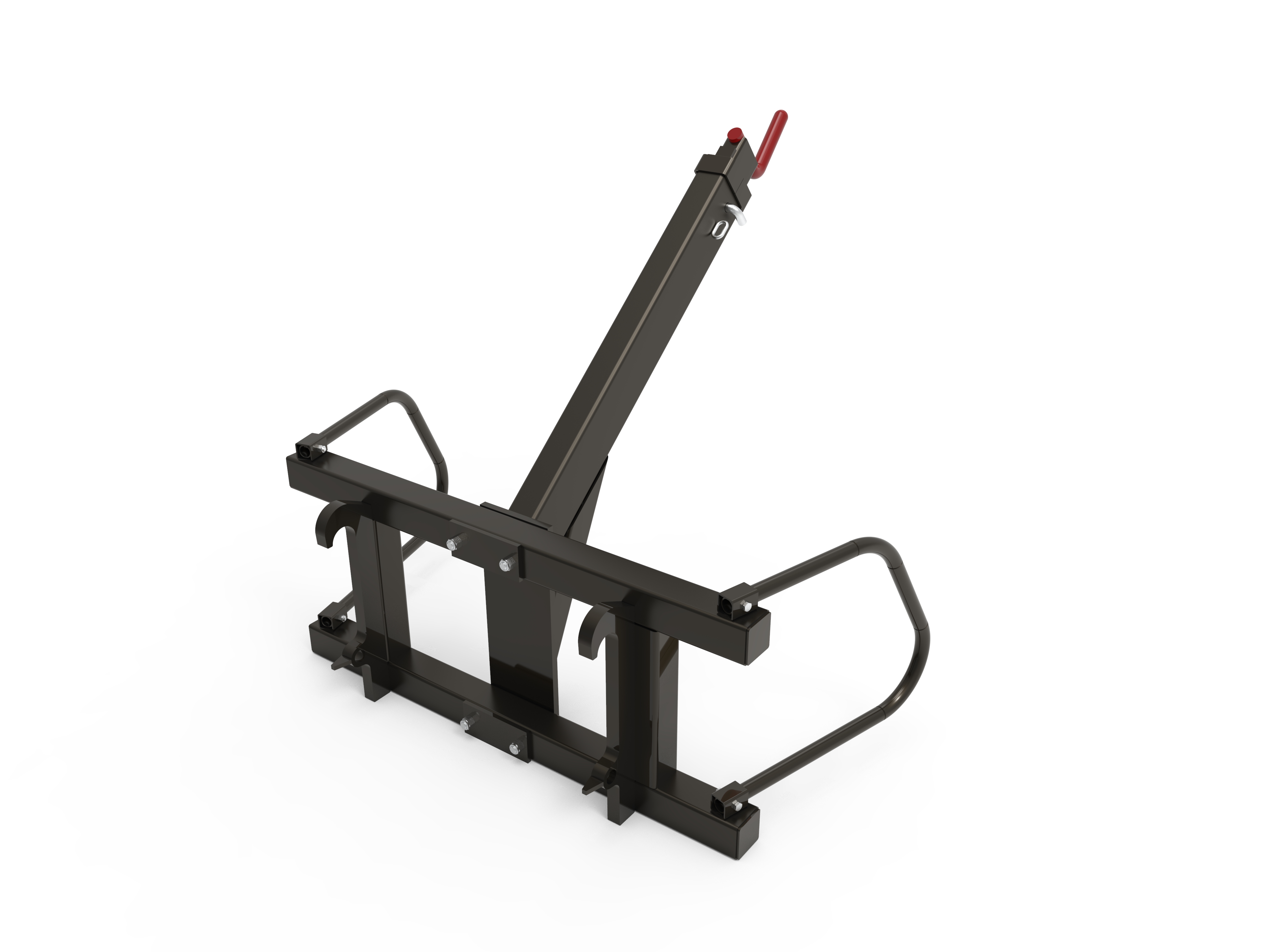

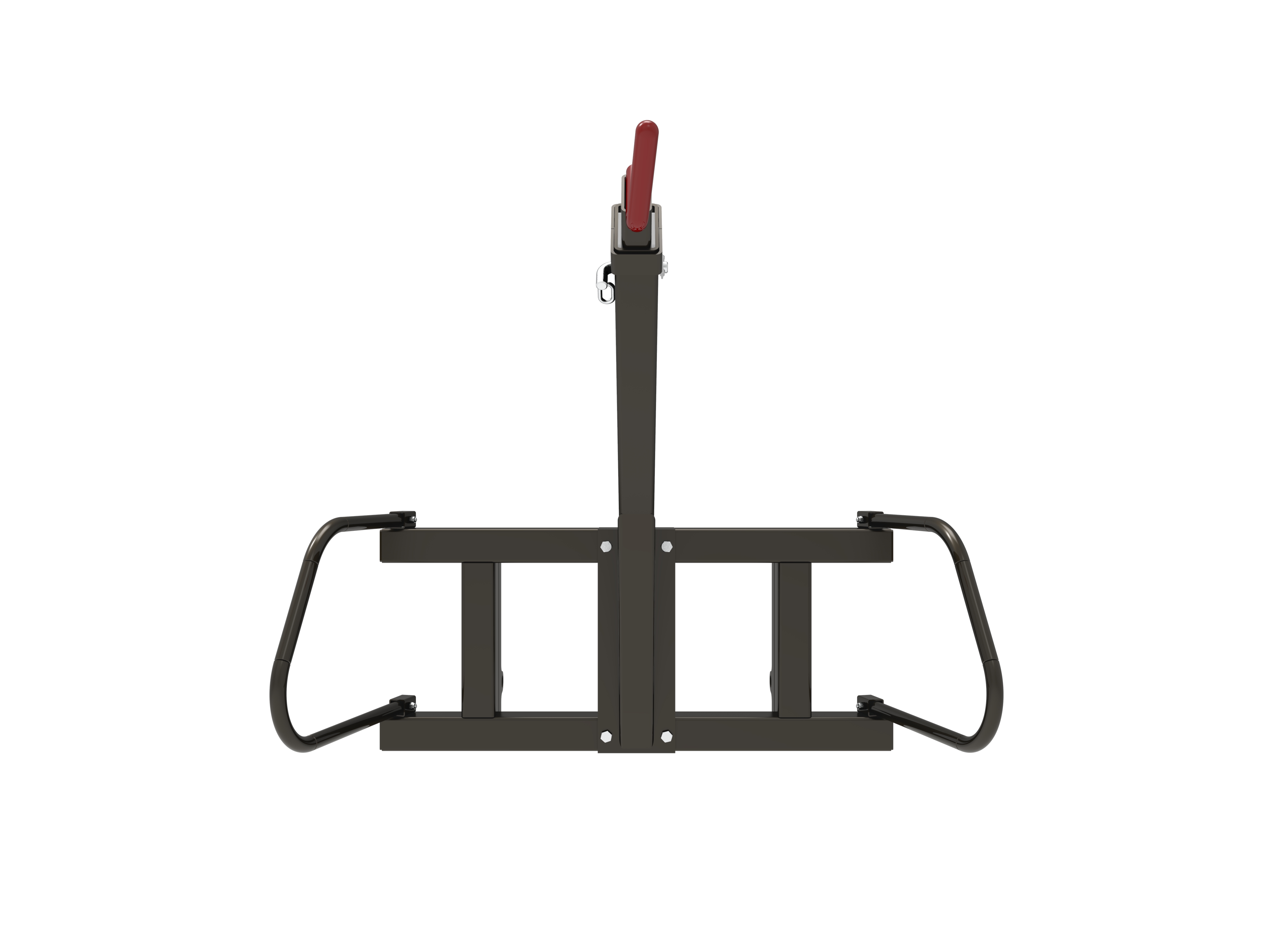

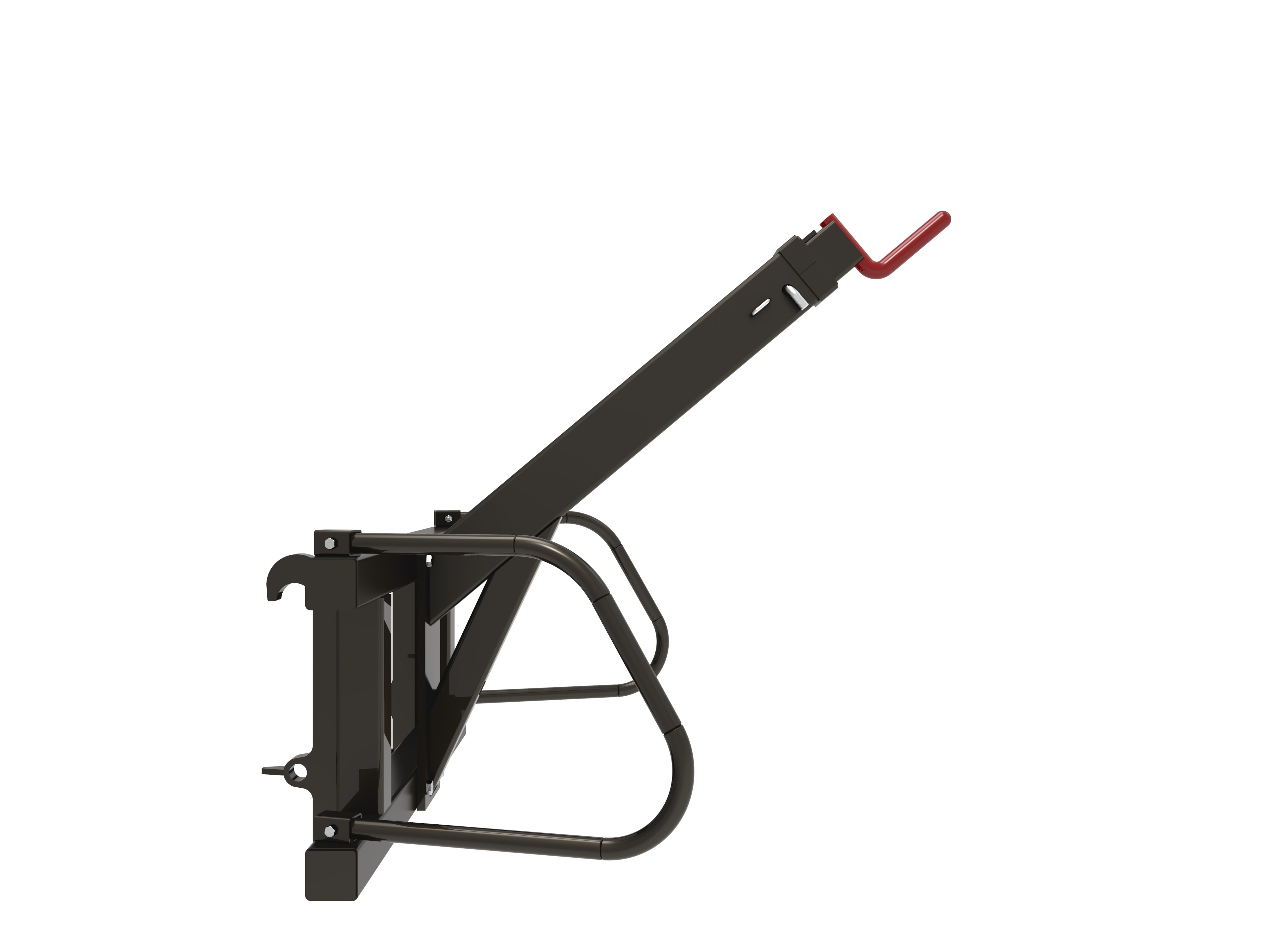

The Big Bag Lifter is a very functional implement for lifting big bags.
Type:
T-BBLSurface Treatment:
Black Painting or As RequestThe Big Bag Lifter is a very functional implement for lifting big bags.
- A large hook, visible for the driver, makes it easy to drive it in through the loops on the bag.
- The big bag lifter is telescopic, and can be supplied in single or double design.
Specification

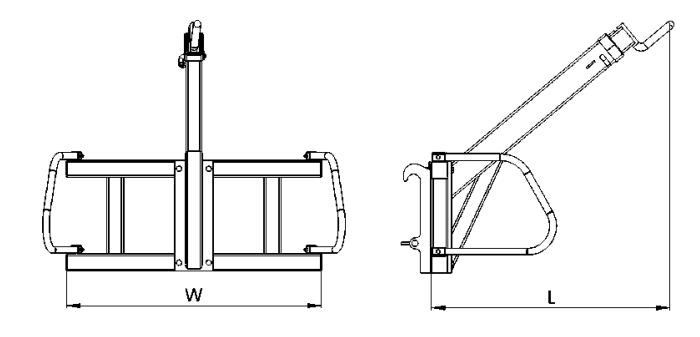

| Type | Width of the Frame/mm | No. of Arms | Length(min/max) |
SWL/kg
|
Weight |
Attachment
|
|
T-BBL12-SMS-C
|
1200 | 1 | 1100/1500mm | 1500 | 112 | SMS |
|
T-BBL12-EURO
|
1200 | 1 | 1100/1500mm | 1500 | 110 | EURO |
| T-BBL18-SMS-C | 1800 | 2 |
1100/1500mm |
1500kg/arm |
178 | SMS |
|
T-BBL18-EURO
|
1800 | 2 |
1100/1500mm |
1500kg/arm |
176 | EURO |
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
