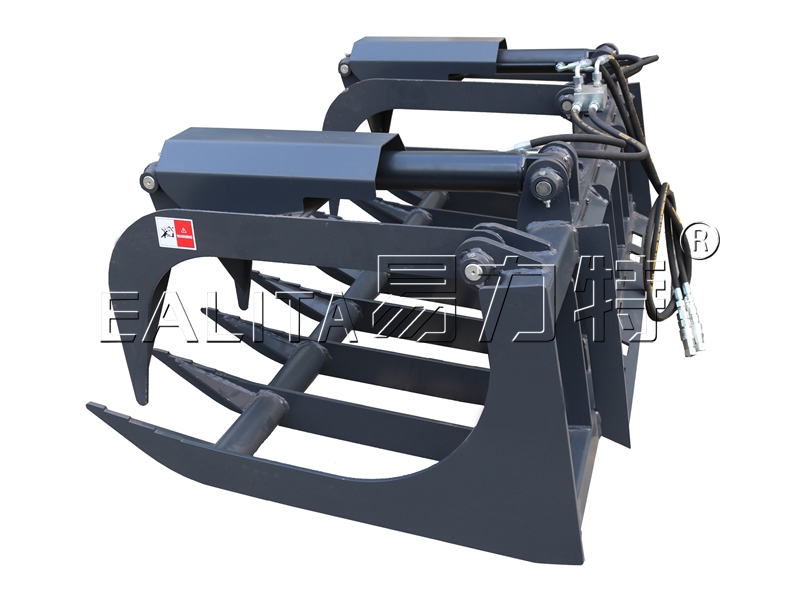

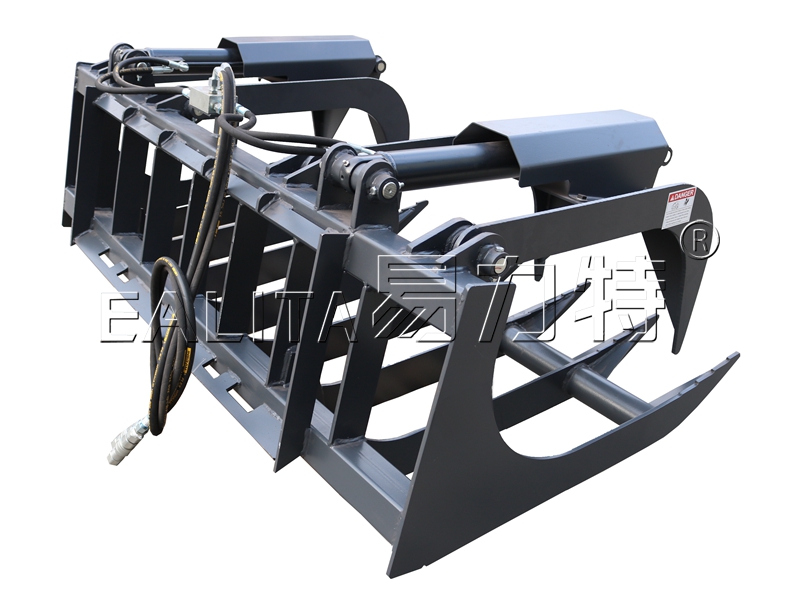

The Root Grapple Bucket is ideal for picking up and moving small logs, brush, debris, and other odd shaped or hard to lift material.
Type:
S-RGSurface Treatment:
Black Painting or As RequestThe Root Grapple Bucket is ideal for picking up and moving small logs, brush, debris, and other odd shaped or hard to lift material.
- It's efficient light weight design will not tax your loader's power allowing you to work faster.
- The independent grapples make it easy to move difficult and uneven loads.
- The serrated leading edge provides exceptional grip and can easily tear through small roots and brush.
- This grapple is not intended for heavier duty, commercial grade work to include digging or pulling trees, rocks, roots from the ground.
Features
- Universal skid steer style hookup
- Protective canvas sleeve keeps the hydraulic hoses from getting pinched when in use
- Greasable pins and bushings
- Hoses and flat faced couplers are included
- Twin cylinders
Specification
· Teeth Thickness: 10mm
· Pressure: 20Mpa
· Oil Flow: 60lpm
|

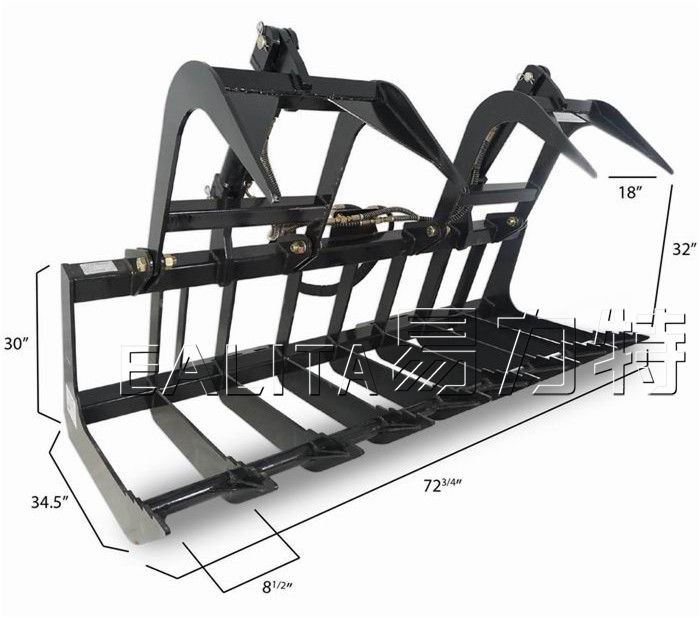

Type
|
Width(W)/mm
|
Opening Range(OR)/mm
|
Teeth Length(Lt)/mm
|
Teeth Thickness(Tt)/mm
|
Weight/kg
|
|
S-RG1830(72IN)-MP1220
|
1830 | 390-813 | 985 | 10 | 272 |
|
S-RG2130(84IN)-MP1220
|
2130 | 390-813 | 985 | 10 | 300 |
