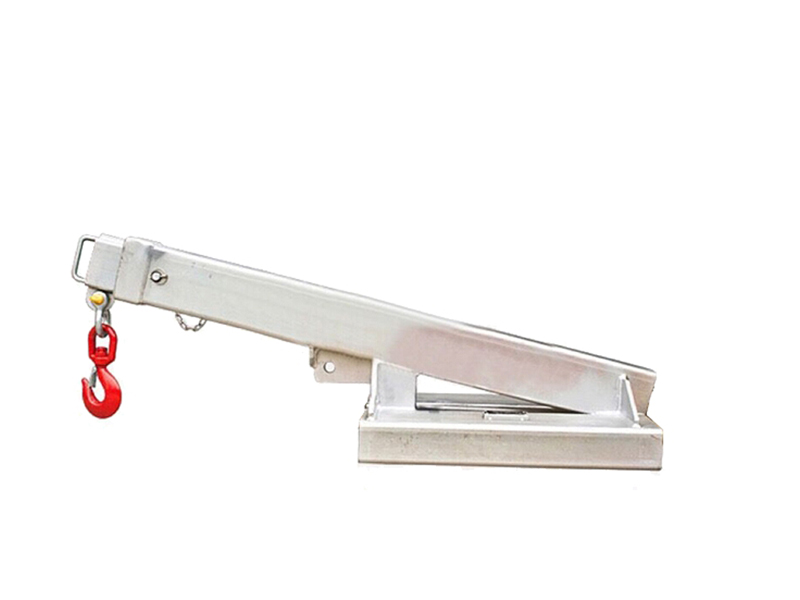

The type F-FJA350 3500kg Telescopic Extension Jib attachment is designed as an affordable general purpose Jib able to manoeuvre in confined spaces, with a 2.365 metre reach when fully extended.
Type:
F-FJA350Products Code:
03.01.04.0005Surface Treatment:
Galvanizing or As RequestThe type F-FJA350 3500kg Telescopic Extension Jib attachment is designed as an affordable general purpose Jib able to manoeuvre in confined spaces, with a 2.365 metre reach when fully extended.
- This slip-on Forklift attachment is held to the Forklift by a safety chain.
- The Jibs overall length when closed is 1.5 metres. The standard finish on the type FJA350 Extension Jib is Zinc Plated.
Specifications
• Code: 03.01.04.0005
• Working Load Limit (WLL): 3500kg Max.
• Unit Weight: 115kg
• Load Centre: 800mm
• Pocket Size: 185 x 65mm
• Pocket Centres: 300 mm
• Horizontal C of G: 580mm
• Vertical C of G: 110mm

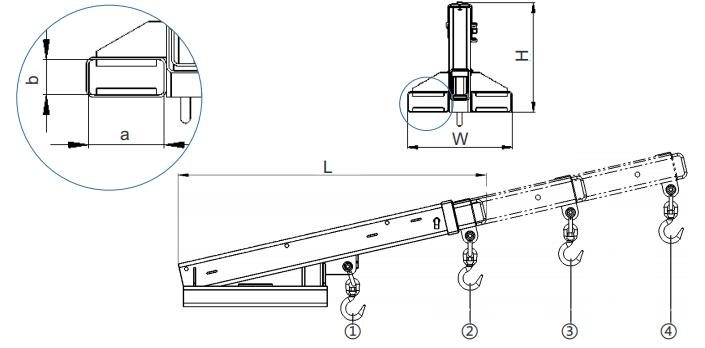

• Dimension(LWH)/mm：1500×500×525
|
Position
|
1 | 2 | 3 | 4 |
|
Extension/mm
|
800 | 1390 | 1880 | 2365 |
|
SWL/kg
|
3500 | 850 | 500 | 350 |
