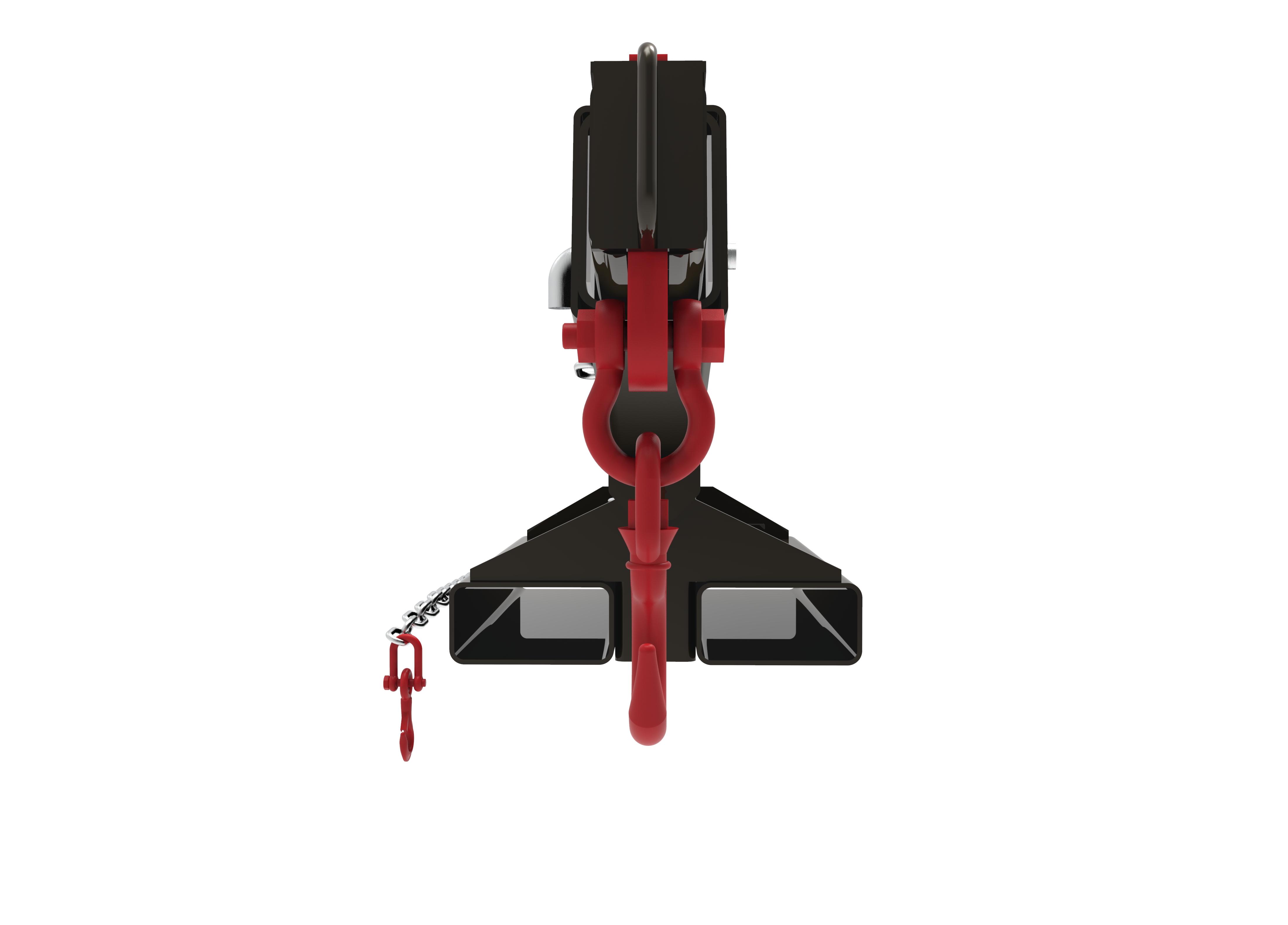

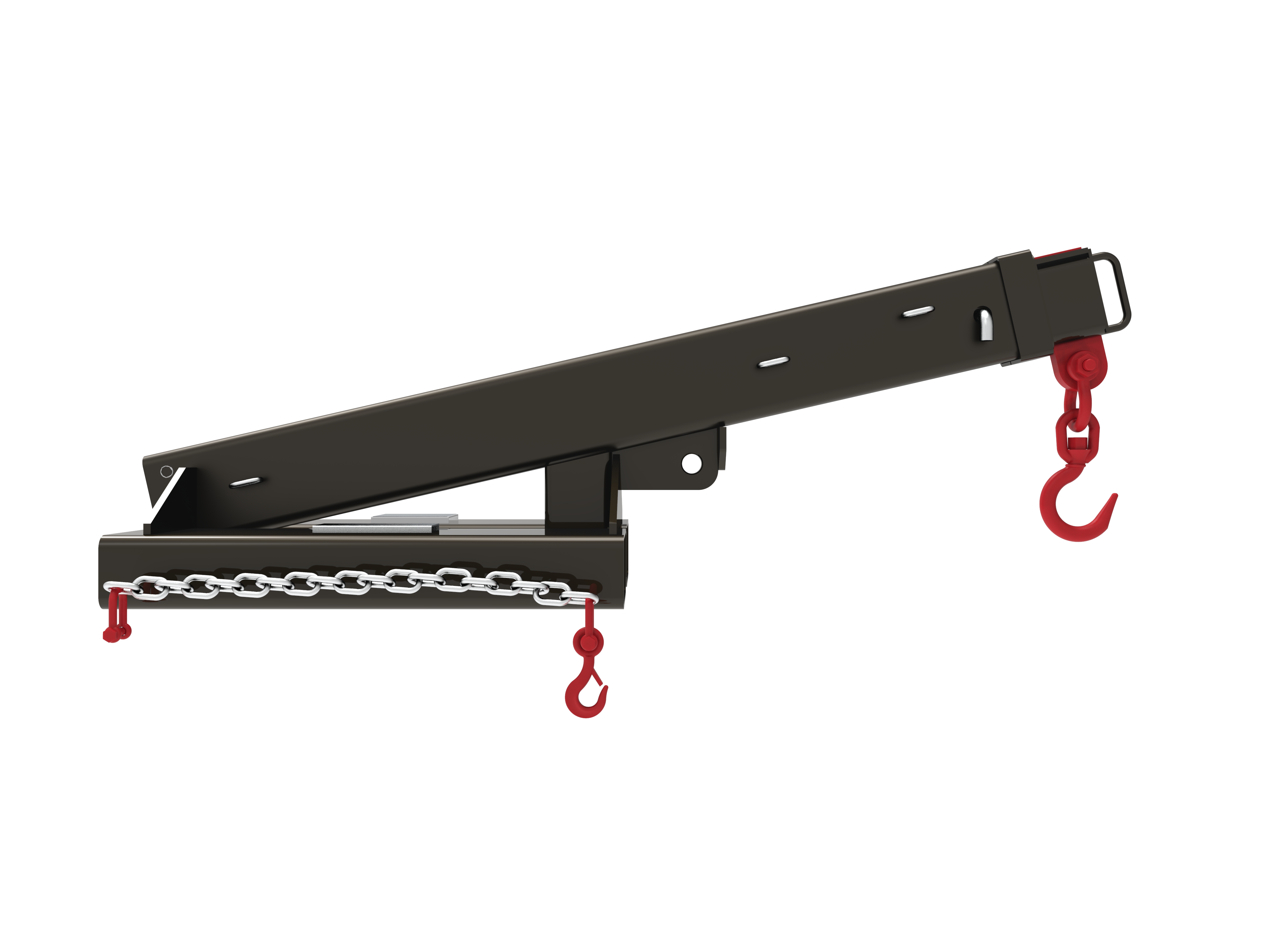

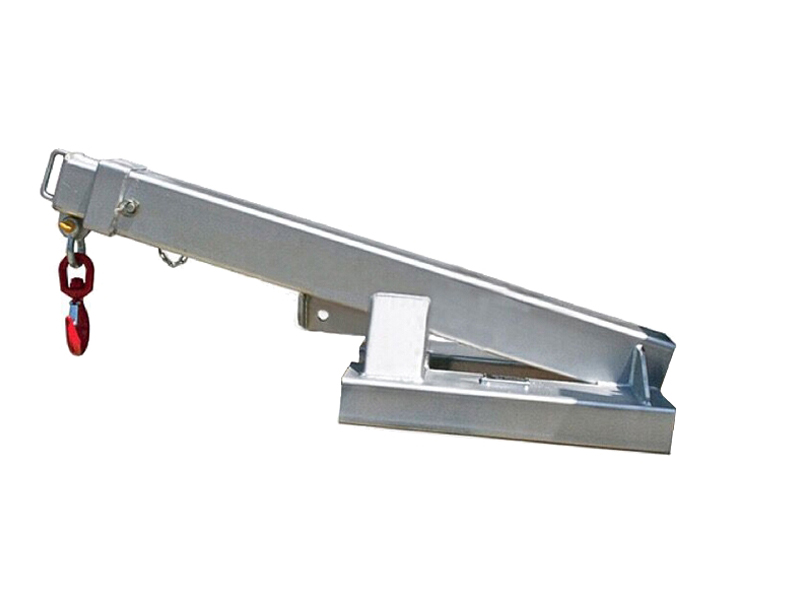

The type F-FJA470 4700kg Telescopic Extension Jib attachment is designed as an affordable general purpose Jib able to manoeuvre in confined spaces, with a 2.365 metre reach when fully extended.
Type:
F-FJA470Products Code:
03.01.04.0042Surface Treatment:
Galvanizing or As RequestThe type F-FJA470 4700kg Telescopic Extension Jib attachment is designed as an affordable general purpose Jib able to manoeuvre in confined spaces, with a 2.365 metre reach when fully extended.

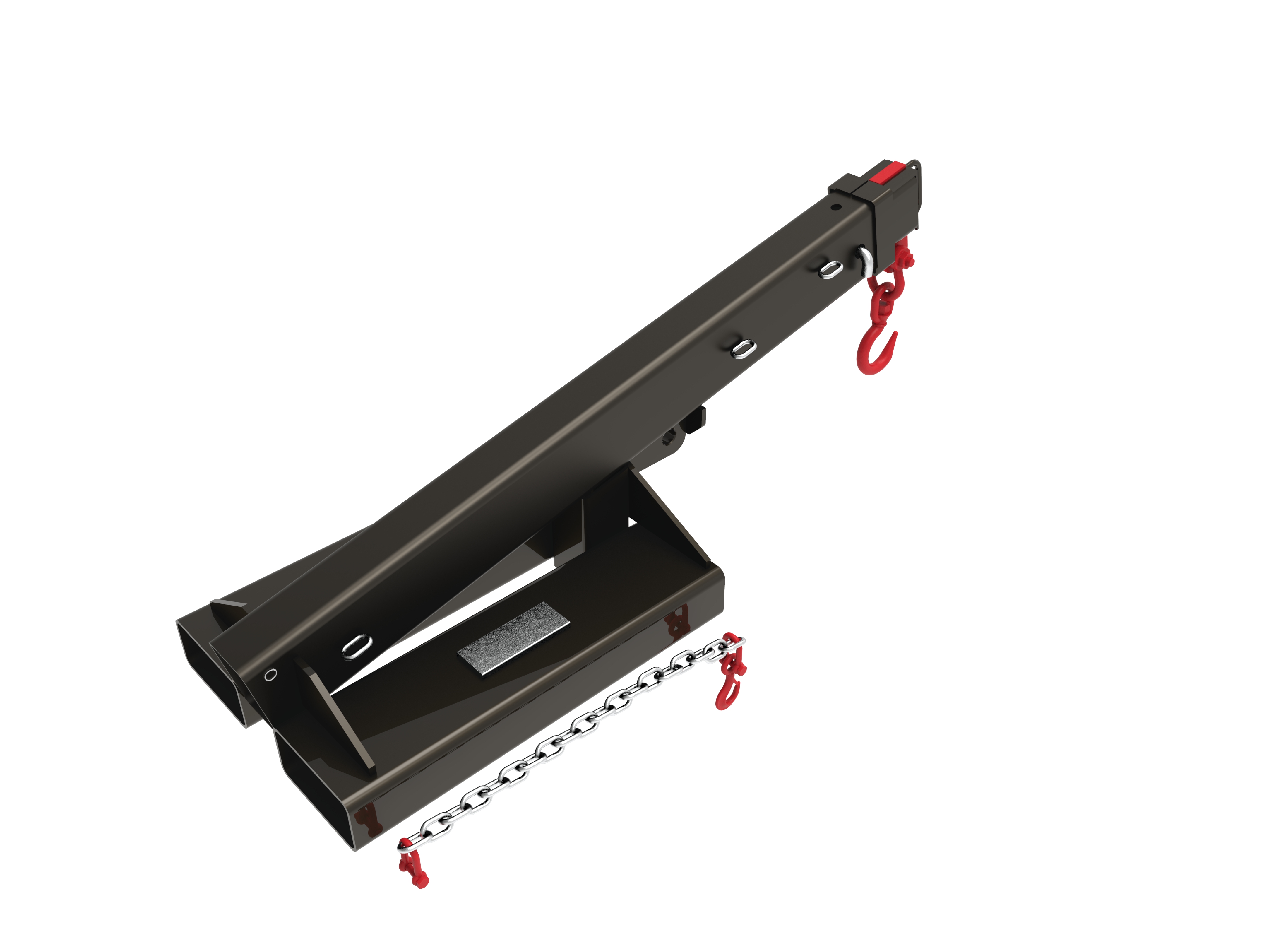

- This slip-on Forklift attachment is held to the Forklift by a safety chain.
- The Jibs overall length when closed is 1.5 metres. The standard finish on the type FJA-470 Extension Jib is Zinc Plated.
Specifications
• Code: 03.01.04.0042
• Working Load Limit (WLL): 4700kg Max.
• Unit Weight: 140kg
• Load Centre: 790mm
• Pocket Size: 185 x 65mm
• Pocket Centres: 350 mm
• Horizontal C of G: 600mm
• Vertical C of G: 120mm
• Dimension(LWH)/mm:1500×550×525
|

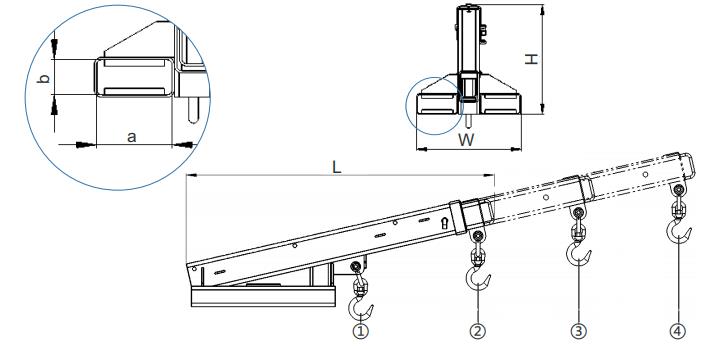

Position
|
1 | 2 | 3 | 4 |
|
Extension/mm
|
790 | 1390 | 1880 | 2365 |
|
SWL/kg
|
4700 | 1200 | 700 | 500 |
