Forklift Booms, Lift Tilt Jibs For Flexible Lifting of Bulky Load F-SFJS10

Forklift Booms, Lift Tilt Jibs For Flexible Lifting of Bulky Load F-SFJS10

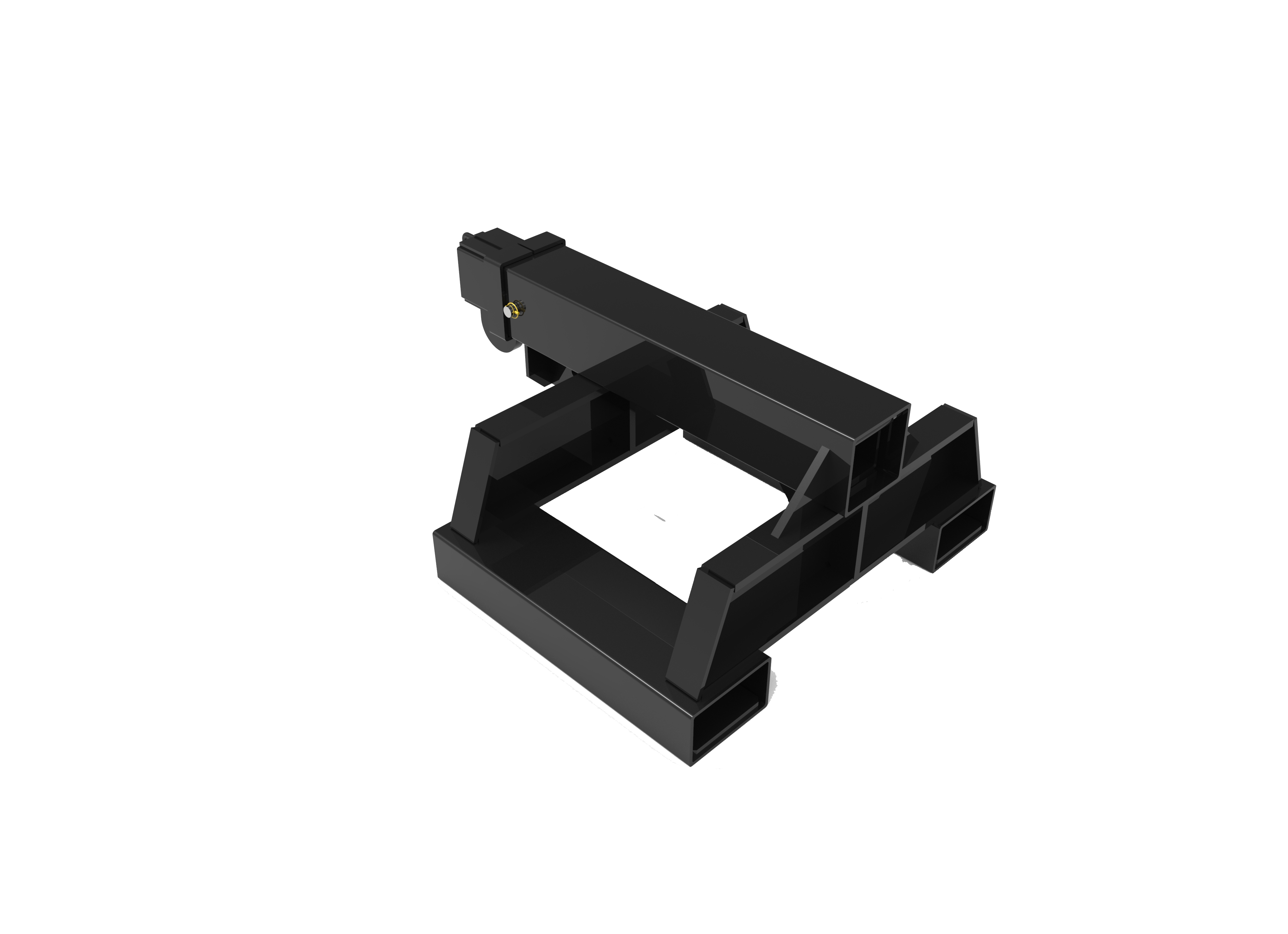

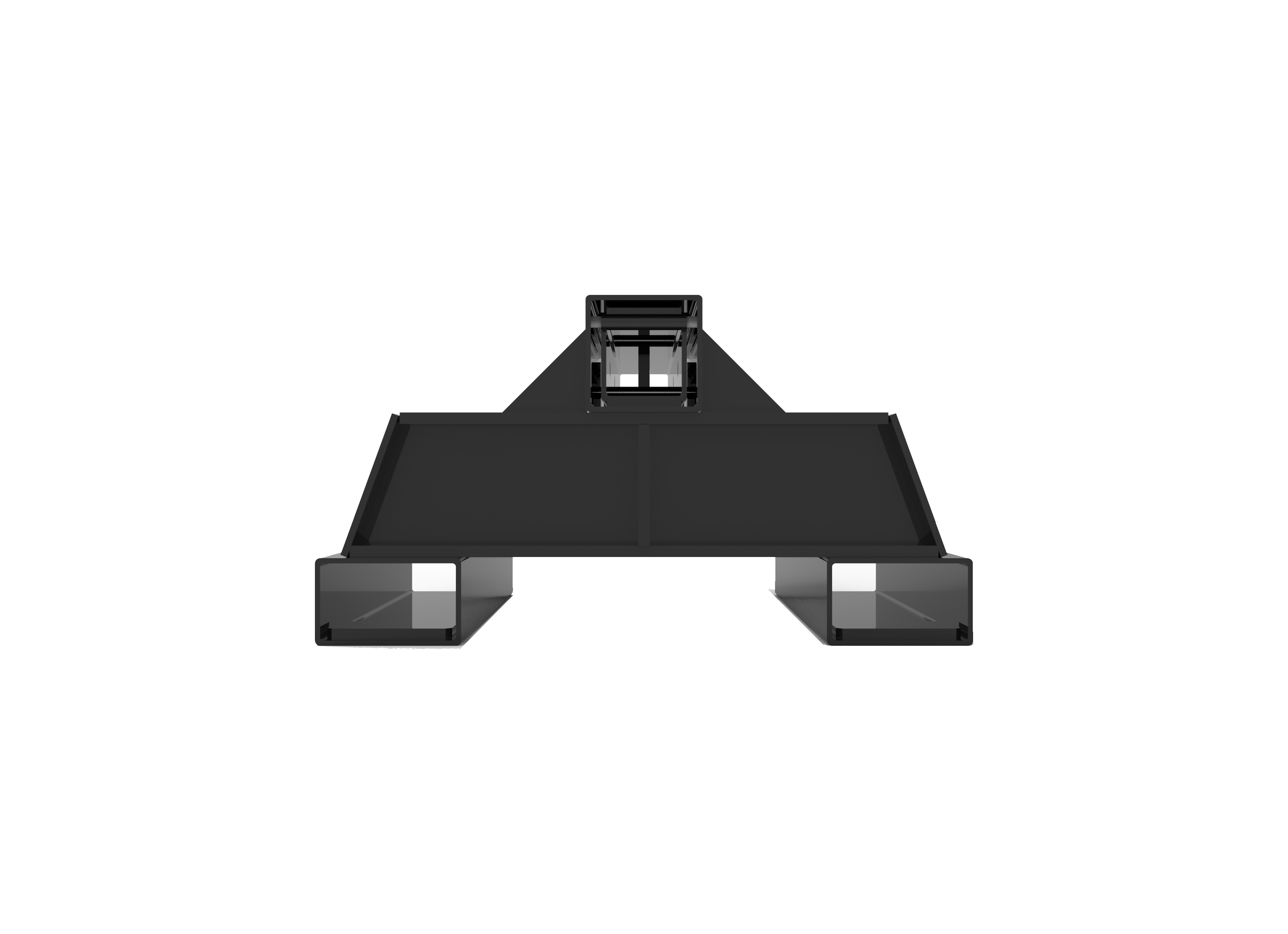

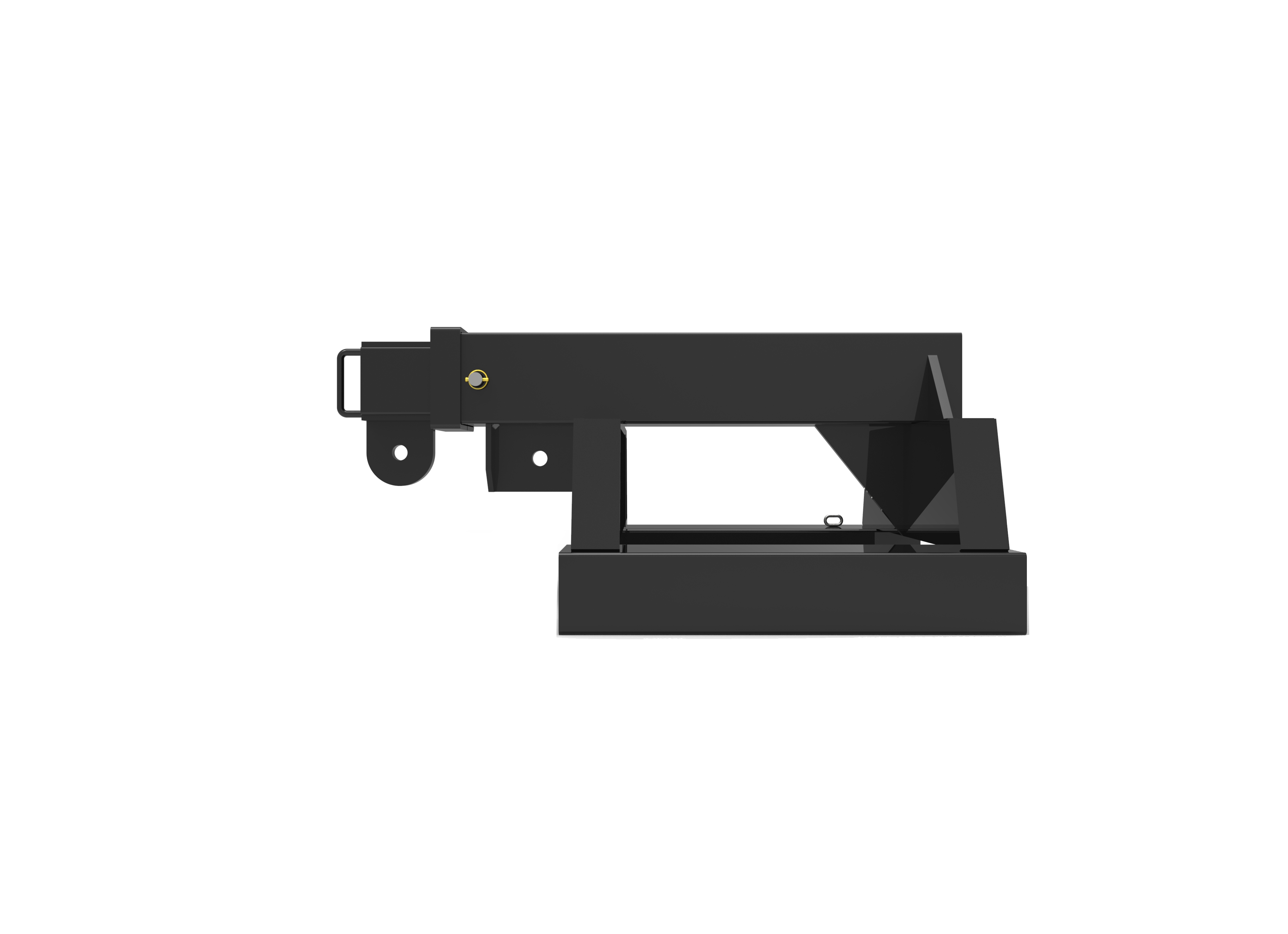

This 10,000kg Short Fixed Jib is designed for larger forklifts and is the largest capacity jib in our range.

  • Type:

    F-SFJS10
  • Surface Treatment:

    Galvanizing or As Request
  • Product Details

This 10,000kg Short Fixed Jib is designed for larger forklifts and is the largest capacity jib in our range.

- Maximum extension is 2 metres, with the overall jib length when retracted of 1.39 metres.

- Fitted with wide pocket centres. Zinc plated finish.


Specifications

· Safe Working Load (SWL) 10,000kg Max.

· Unit Weight 400kg

· Load Centre 930mm

· Pocket Size 230 x 100mm

· Pocket Centres 875 mm

· Horizontal C of G 740mm

· Vertical C of G 100mm

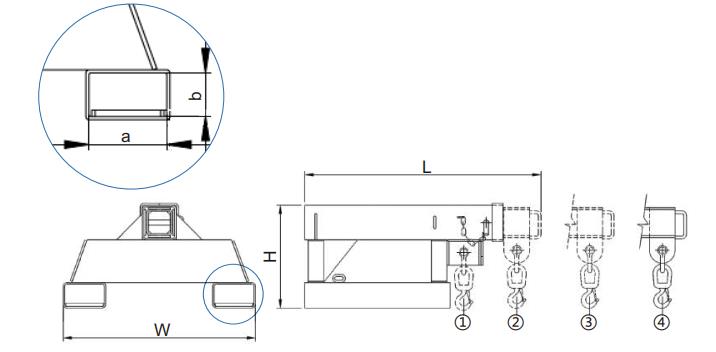

· Dimension(LWH)/mm:1390×1125×600

Position
1 2 3 4
Extension/mm
930 1245 1625 2005
SWL/kg
10000 4800 3600 3000
