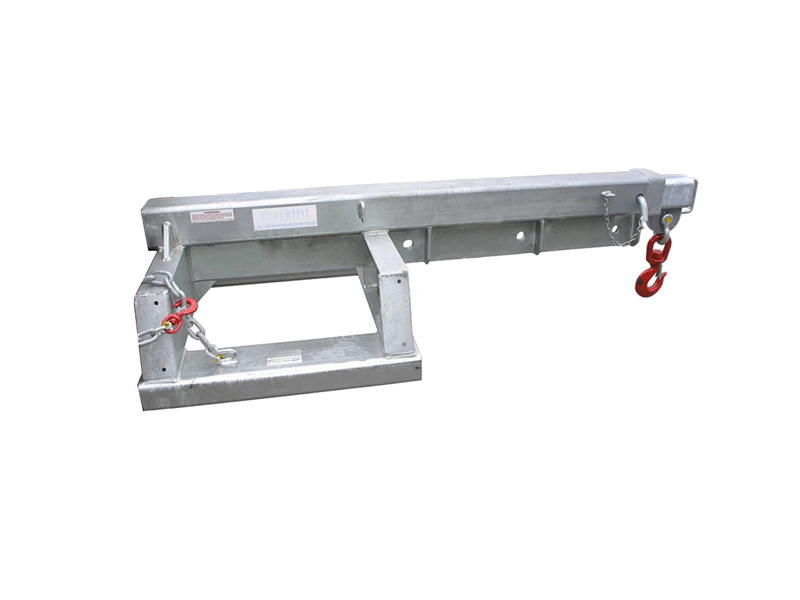

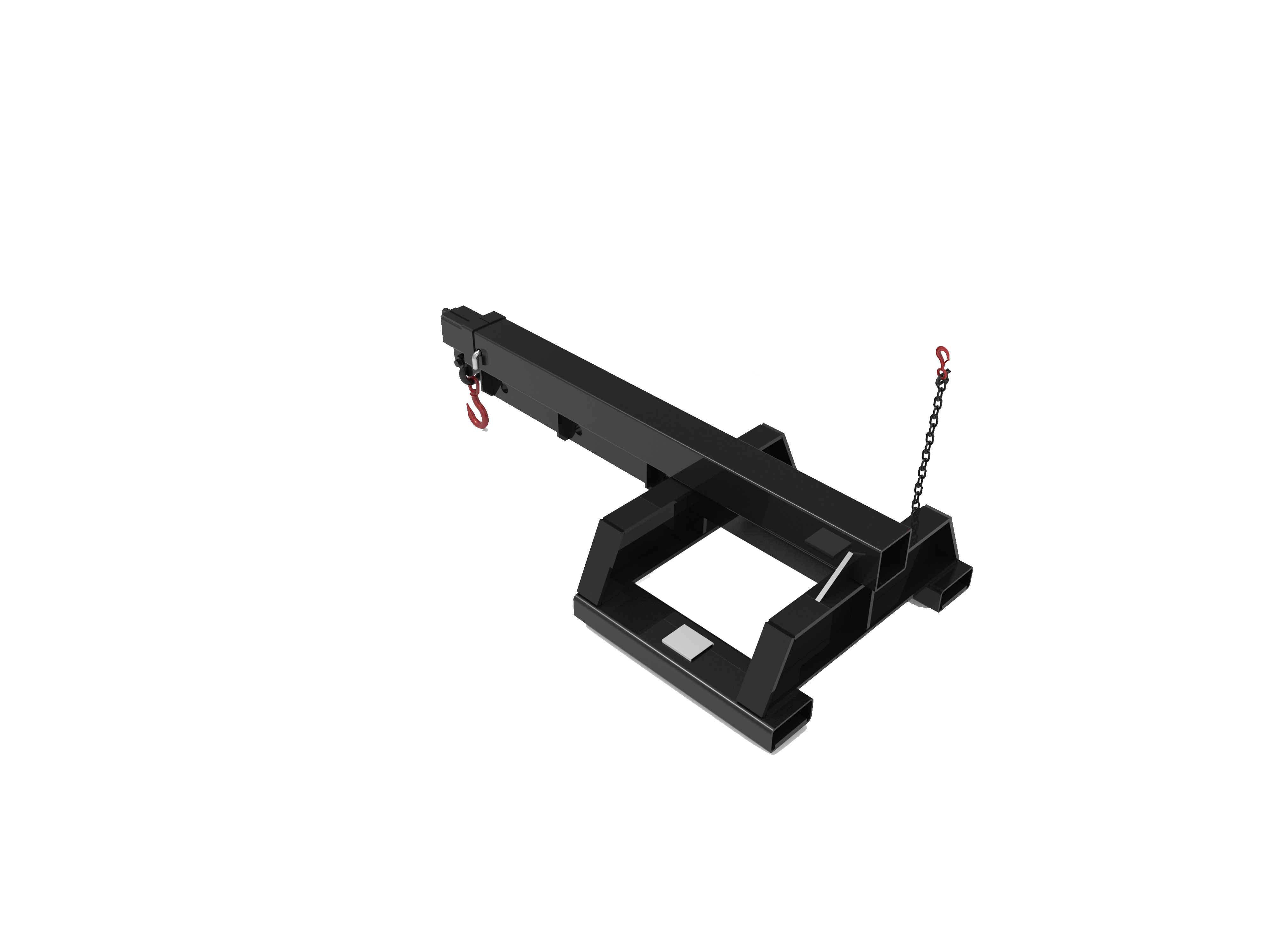

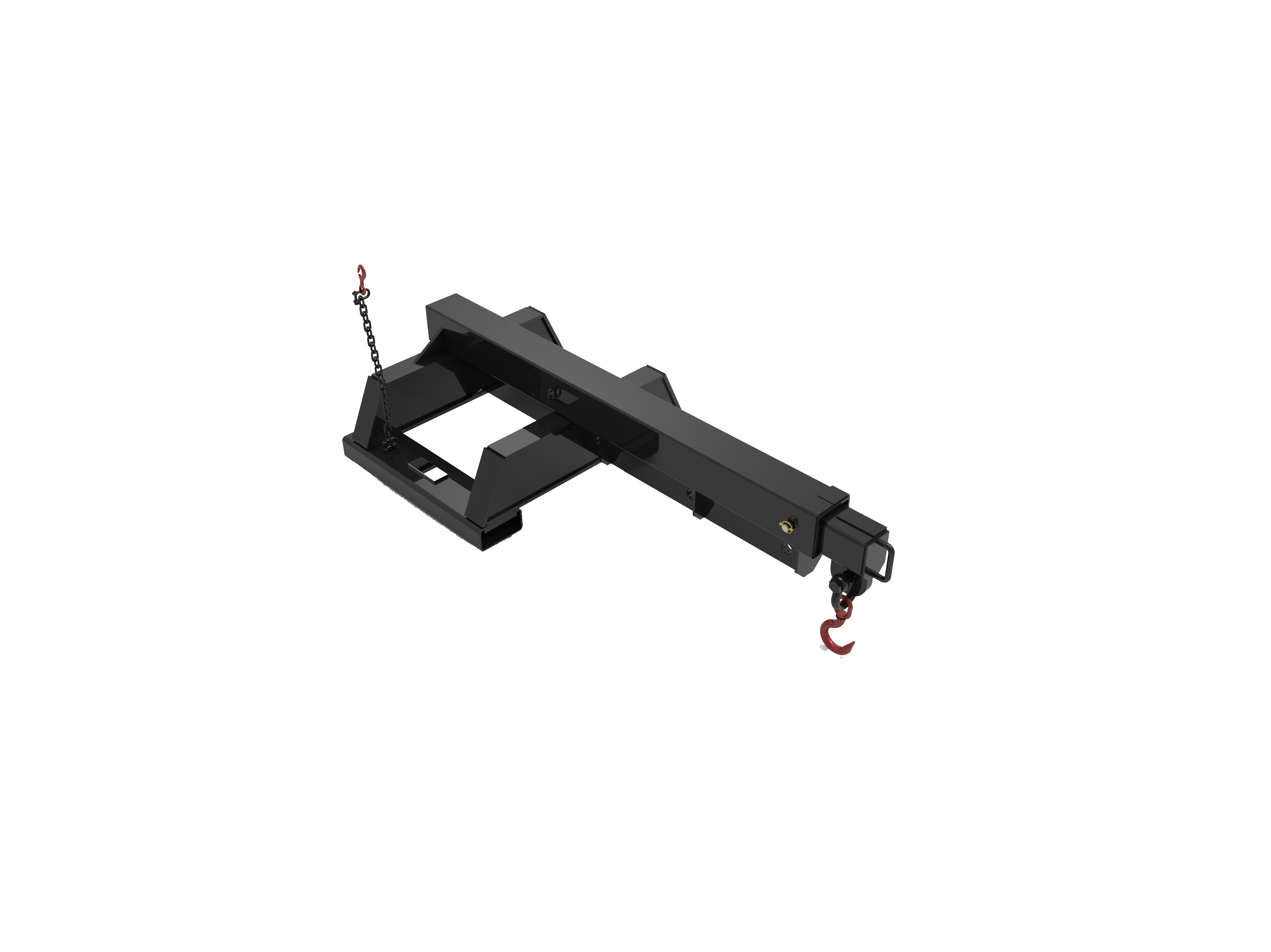

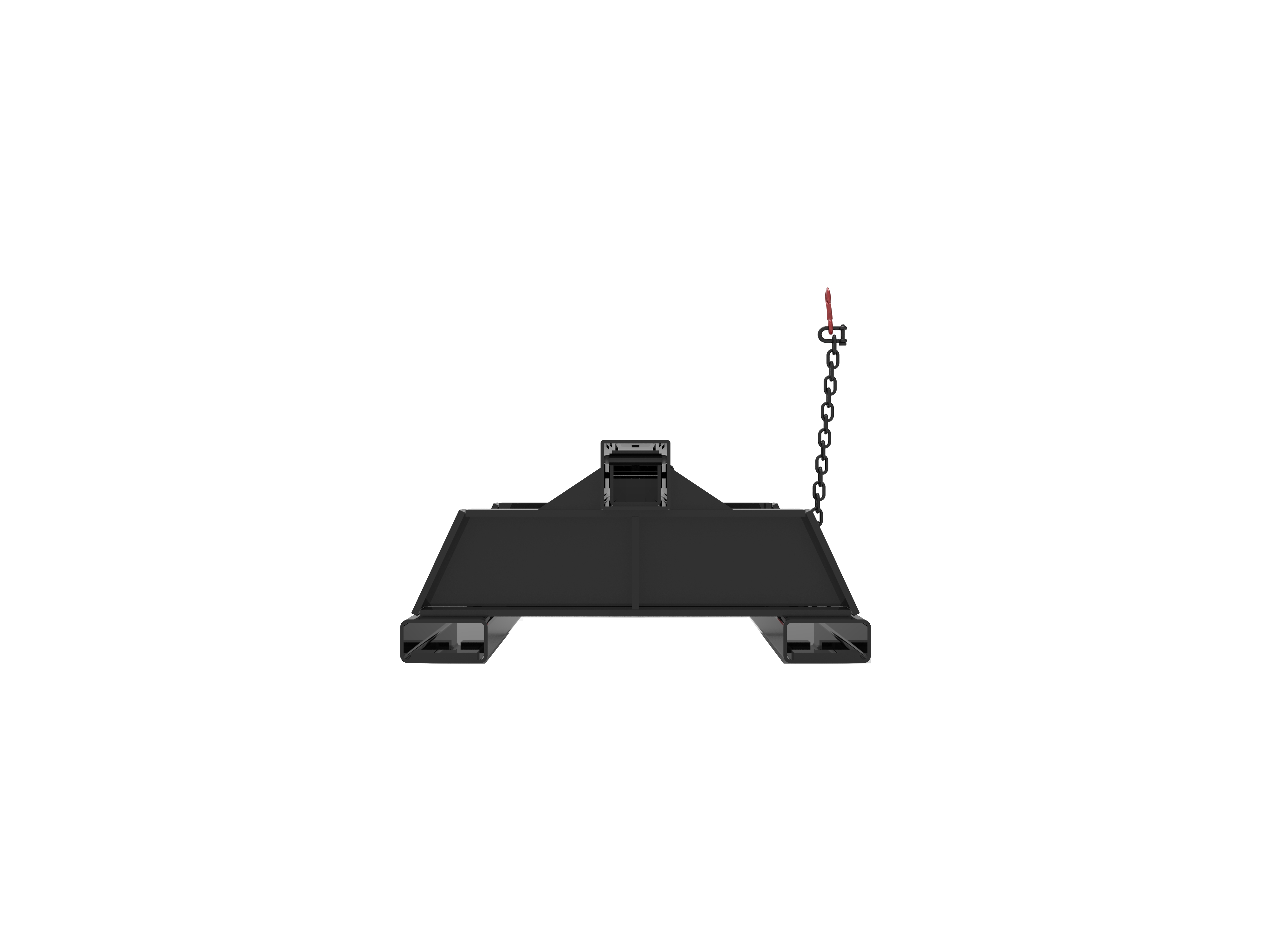

The type F-SFJS7.5 Fixed Jib (Short) is designed as an affordable general purpose Jib able to manoeuvre in confined spaces, with a 2.0 metre reach when fully extended.
Type:
F-SFJL7.5Products Code:
03.01.04.0044Surface Treatment:
Galvanizing or As RequestThe type F-SFJS7.5 Fixed Jib (Short) is designed as an affordable general purpose Jib able to manoeuvre in confined spaces, with a 2.0 metre reach when fully extended.
- This Jib has been designed with wide pockets suitable for Forklifts with special hydraulic Tine Positioners.
- This slip-on Forklift attachment is held to the Forklift by a safety chain.
- The Jibs overall length when closed is 1.39 metres. Supplied with safety swivel Hook and Shackle.
Specification
· Code: 03.01.04.0044
· Safe Working Load (SWL) 7500kg Max.
· Unit Weight 450kg
· Load Centre 930mm
· Pocket Size 180 x 80mm
· Pocket Centres 875 mm
· Horizontal C of G 740mm
· Vertical C of G 100mm
· Dimension(LWH)/mm: 2190×1075×500
|

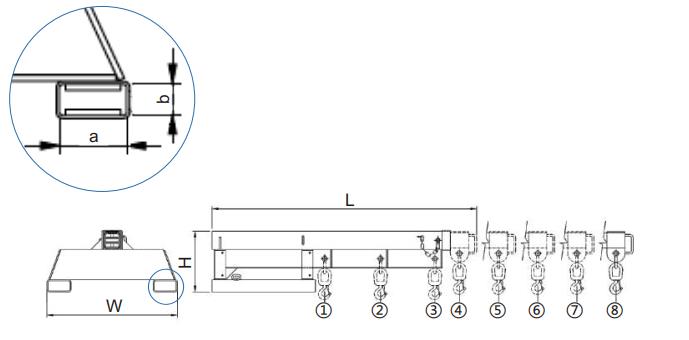

Position
|
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|
Extension/mm
|
920 | 1380 | 1805 | 2045 | 2425 | 2805 | 3185 | 3565 |
|
SWL/kg
|
7500 | 6410 | 5700 | 4950 | 3750 | 1950 | 1140 | 720 |
